燃烧臂制作

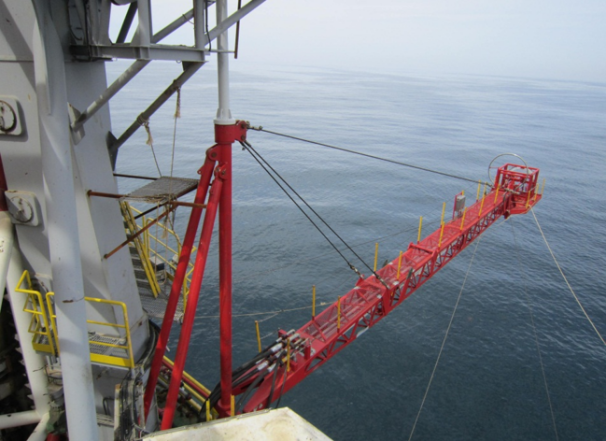

Purpose of combustion arm: especially for oil testing of offshore drilling platform. The total length is 22m & 26m, the trestle is 18m & 22m long, 0.876m wide and 0.876m high, the burner is 4m long, 2.3m wide and 2.4m high, and the total weight is about 8t.

燃烧臂用途：海上钻井平台试油专用。总长22m & 26m，栈桥部分长18m & 22m 、宽0.876m、高0.876m，燃烧器部分长4m、宽2.3m、高2.4m，总重量约为8t。

The burner will meet the oil and gas processing capacity requirements of 4000 barrels / day ~ 12000 barrels / day; Single head processing capacity of combustion head: 4000 barrels / head / day, and the maximum processing capacity of natural gas ≥ 2.2 million cubic meters per day.

燃烧器能够满足4000桶/天～12000桶/天的油气处理量要求； 燃烧头单头处理能力：4000桶/头/天，天然气最大处理能力每天≥220万方。

Executive Standards for design, manufacturing, materials and inspection of combustion arm project燃烧臂项目设计、制造、材料、检验等执行标准

Design standards  /  设计标准：GB50017-2003、SY/T10002-2000、ANSI /ASME B31.3、NACE (MR.01.75)

Manufacturing standards  /  制造标准：ASME Sec.VIII Div 1、ANSI/ASME B31.3、AWS D 1.1

Material standards  /  材料标准：GB/T1591-1994、GB/T9787-1988、GB/T8163-1999

Inspection standards  / 检验标准 ：Drawings audited by The classification society, relevant specifications of the  classification society;  船级社审核图纸、船级社相关规范；

Provide product inspection certificate by Classification Society （ABS/CCS/DNV)     出具船级社产品检验证书  （ABS/CCS/DNV)
